Our ES417 evaluation system for the MSP430 allows you to experiment with the features of the MSP430F417 and our SBLCDA4.

It features:

  • MSP430F417 flash processor
  • Our custom SBLCDA4 LCD
  • Texas Instruments RS232 interface using the MAX3221
  • Adjustable TPS7201 LDO for benchtop use
  • One-cell power supply based on the TPS60310 (3.3v from one AA or AAA battery)
  • 4 green user LEDs
  • CR2032 coin cell supply and 3.3v capacitive charge pump
  • JTAG header, perfect for use with our FETP or USBP (not included)
  • Bootload header, perfect for use with our UBSL or BLMSPF (not included)
  • 2 user switches
  • Every MSP port pin exposed at IDC headers
  • Large prototyping area
  • Roomy 2Mbit SST serial flash for data logging applications
  • DAC7512 12-bit low-power serial DAC
  • 32kHz watch crystal

Pricing and Ordering Information

To order any of our products, you may order directly from us (Net 30 or credit card) by phone, fax or e-mail, or here via our e-store:

Part Number Price Description Order
ES417-N-N-N 199.00 ES417 only Add to Cart

Or, if you prefer, order via one of our distributors.

back to top

Related Items

  • Get the FETP for parallel port JTAG programming.
  • Get the USBP for USB port JTAG programming
  • Get the SB6V for 6v DC lab power use.
  • Get the ISOFETP for parallel port JTAG programming with 1000v isolation for power-mains projects.
  • Our PWIRE prototyping wires assist with making fast, easily changed port pin connections
  • Need a second RS232 interface? Use our BRS232.
  • This board features our SBLCDA4 LCD.

back to top

Downloads

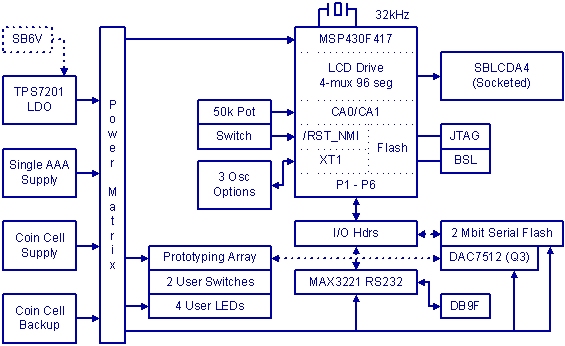

ES417 Block Diagram

ES417 Serial Flash and DAC demo

ES417 Jenny LCD Demo (C)

back to top

FAQs

Q1: I want to use P2.2 and P2.3 in my LCD application, but there's just a square wave (or some other odd signal) there. I've got the P2SEL set to make them port pins. What's going on?
A1: Unfortunately, when the LCD module is configured to control segments S0 to S23, you cannot use the unused segments S22 and S23 in port mode. Since P2.2 and P2.3 are shared with S22 and S23, these cannot be used as IOs.

Q2: I accidentally loaded F13x/F14x/F15x/F16x code onto my F41x/F42x/F43x/F44x MSP430 and now it won't work. What is going on?
A2: Here is the official answer from TI:

Register address 0x56 is used for different functions on F149 and F449:

F149: DCO clock frequency control
F449: SVS/Brownout control

This means, (depending) on the value loaded to 0x56, the SVS might be set to a lower level then the actual supply voltage is, causing (periodic) Resets. This would prevent access through JTAG.


So, if this happens to you, try to max the operating voltage, hold reset, make a JTAG access and perform a mass erase to get the F1xx code out of your F4xx.

back to top
