Our ES427 evaluation system for the MSP430 allows you to experiment with the features of the MSP430F427 and our SBLCDA4.

It features:

  • MSP430F427 flash processor
  • Texas Instruments RS232 interface using the MAX3221
  • Adjustable TPS7201 LDO for benchtop use
  • Single AAA 3.3v supply using the TPS60310
  • CR2032 coin cell supply using the TPS60212
  • JTAG header, perfect for use with our FETP or USBP (not included)
  • Bootload header, perfect for use with our UBSL or BLMSPF (not included)
  • 4 user LEDs
  • 2 user switches
  • Roomy 2Mbit SST serial flash for data logging applications
  • 32kHz watch crystal

Pricing and Ordering Information

To order any of our products, you may order directly from us (Net 30 or credit card) by phone, fax or e-mail, or here via our e-store:

Part Number Price Description Order
ES427-N-N-N 199.00 ES427 only Add to Cart

Or, if you prefer, order via one of our distributors.

back to top

Related Items

  • Get the FETP for parallel port JTAG programming.
  • Get the USBP for USB port JTAG programming
  • Get the SB6V for 6v DC lab power use.
  • Get the ISOFETP for parallel port JTAG programming with 1000v isolation for power-mains projects.
  • Our PWIRE prototyping wires assist with making fast, easily changed port pin connections
  • Need a second RS232 interface? Use our BRS232.
  • This board features our SBLCDA4 LCD.

back to top

Downloads

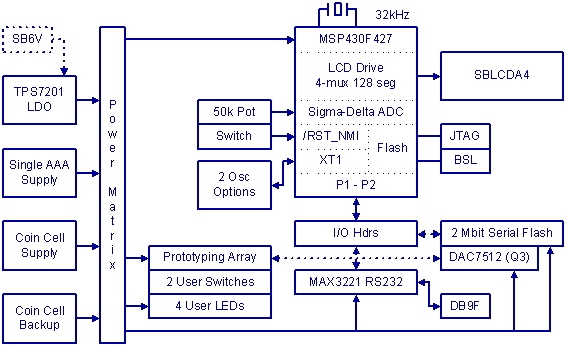

ES427 Block Diagram

ES427 Jenny LCD Demo (C)

back to top

FAQs

Q1: When I try to debug using your code samples I see the following error: "Chosen derivative (msp430f437) and actual hardware (msp430f427) do not match." But when I go to change the target device in the options menu the msp430f427 is not listed. What should I do?
A1: For earlier versions of IAR the msp430f427 is not listed in the target device list. It is ok to use the msp430f437 as your target device in this case. When you see this error, select "OK," then IAR will continue to program the msp430f427.

Q2: The maximum input range of the SD16 module is 0.6v when using the internal 1.2v reference. How can I connect the potentiometer when using this reference?
A2: The connections to allow use of the 50k pot with the internal reference are as follows:

Jumper J6.1 (PW) to J6.3 (A0+),
Jumper J6.2 (-) to J6.4 (A0-), and
Bridge J6.10 (VRF) to J6.12 (P+) with a 51k resistor.

Note that the 51k resistor is required when using the potentiometer with external voltage references, and J6.9 (VRF) will be jumpered to J6.11 (VMSP) in addition to the other connections.
